To meet market demand for capacity and cost control in PVC drainage and pressure pipes, LIANSU has launched the LSDP-160 PVC Double Pipe Extrusion Line. Equioment covers pipe sizes OD63–160mm and achieves stable product output up to 1400kg/h.

System Configuration & Centralized Control

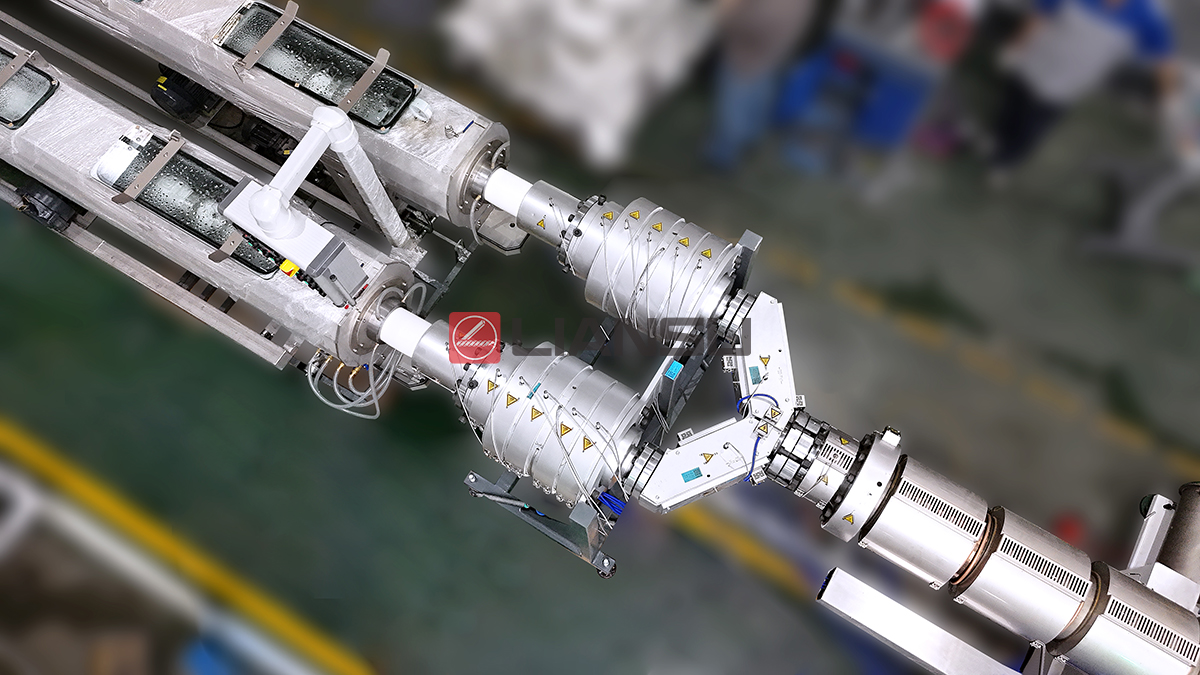

1. Advanced Twin-Screw Extrusion & Dual-Strand Die Head

Adopts parallel twin-screw extruder with two strand pipe head. Screw segmentation is specifically designed for OD63–160mm pipes, enabling synchronized melt extrusion for both cavities. This ensures uniform wall thickness at high production speeds while meeting pressure pipe performance requirements.

2. Independent Dual-Chambers Cooling & Vacuum Sizing

Cooling adopts independently dual chambers and dual pumps. Vacuum level, water level, and water temperature can be adjusted separately, allowing each pipe cooling independently.

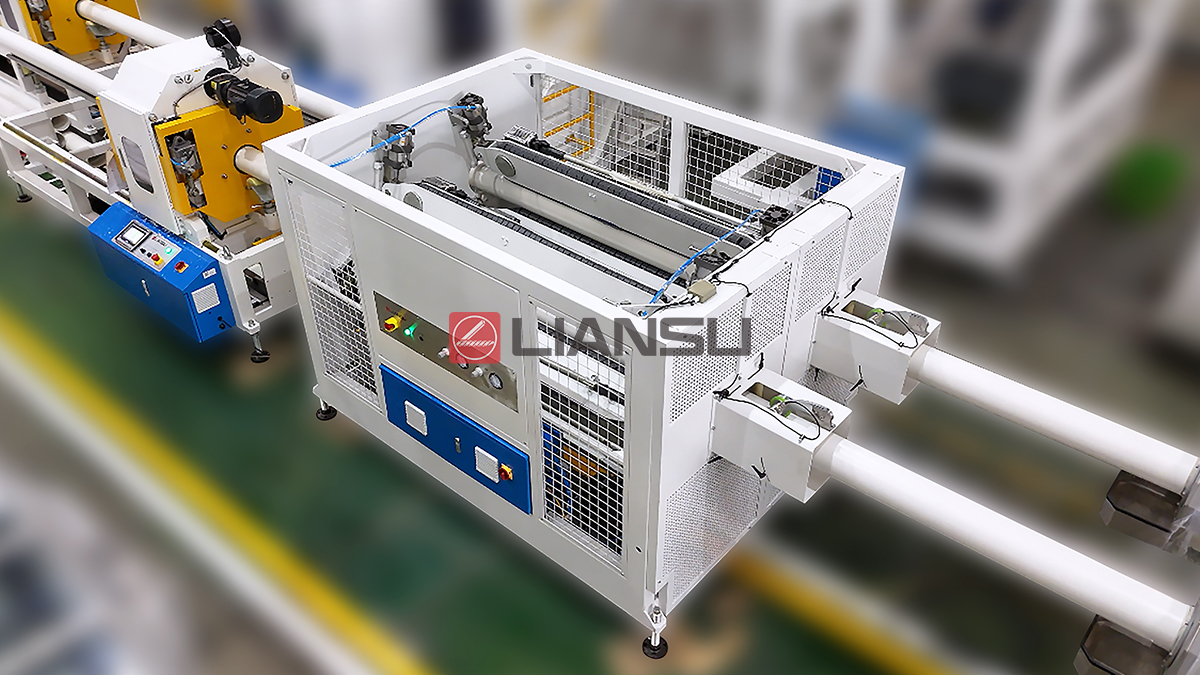

3. Downstream Haul-Off, Precision Cutting & Online Socketing

The downstream adopt double strand three-caterpillar haul off unit with planetary cutter, suitable for OD63–160mm pipe production. An optional online socketing enables continuous cutting and socketing operations.

4. Smart Centralized Control with Flexcon+ System

The entire PVC double pipe extrusion line is integrated with LIANSU’s proprietary Flexcon+ control system:, providing centralized management of extrusion, cooling, pulling, and other process parameters. It supports data collection, analysis, and equipment maintenance functions.

LIANSU offers PVC pipe extrusion lines in various specifications to meet different diameter and output requirements. Contact us at 13392775773 (WhatsAPP)
