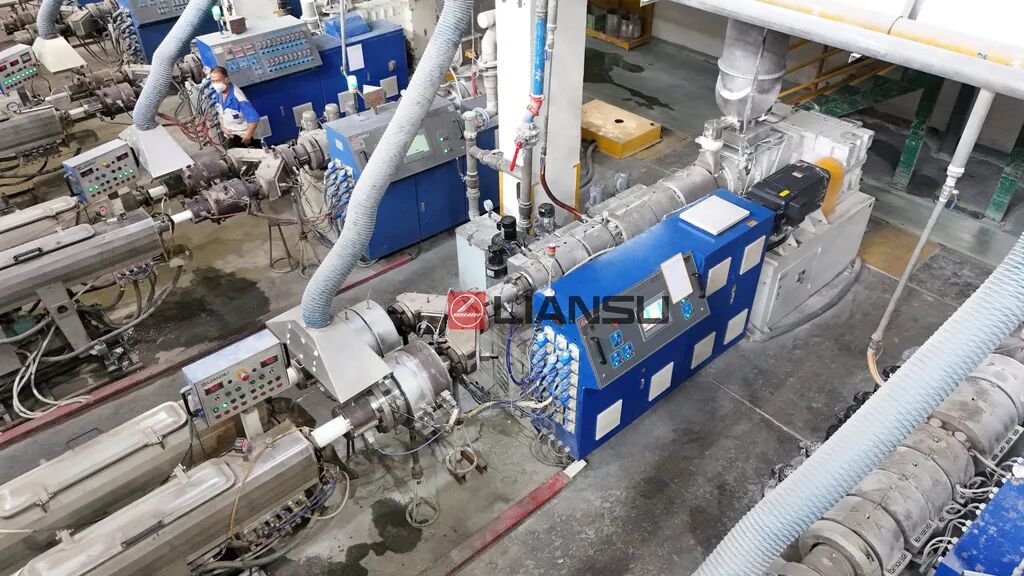

1. Optimized design of Screw and Barrel

The optimized screw and barrel design enhanced shearing and mixing capabilities, significantly improving plasticizing efficiency and ensuring sufficient material melting even at high production.

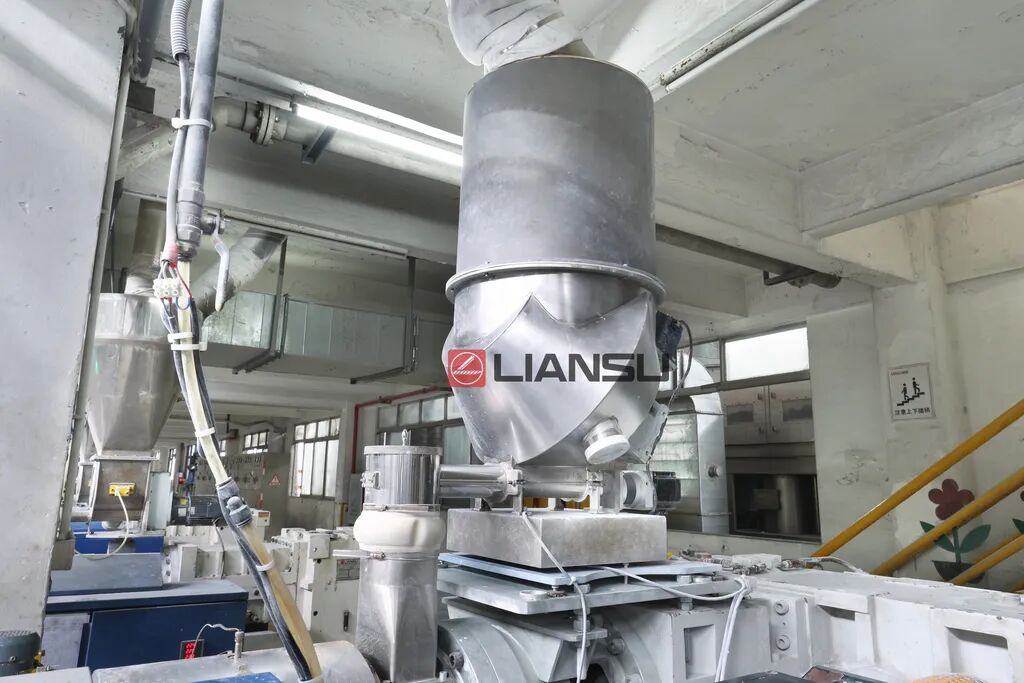

2. Accurate and stable material dosing & feeding

Loss-in-weight feeder offers excellent performance in preventing material bridging and flushing. Even with materials with poor flow ability, it can utilize precise PID algorithm to achieve accurate automatic control of the loss-in-weight process, ensuring production stability and improving product quality while saving about 2% of raw materials.

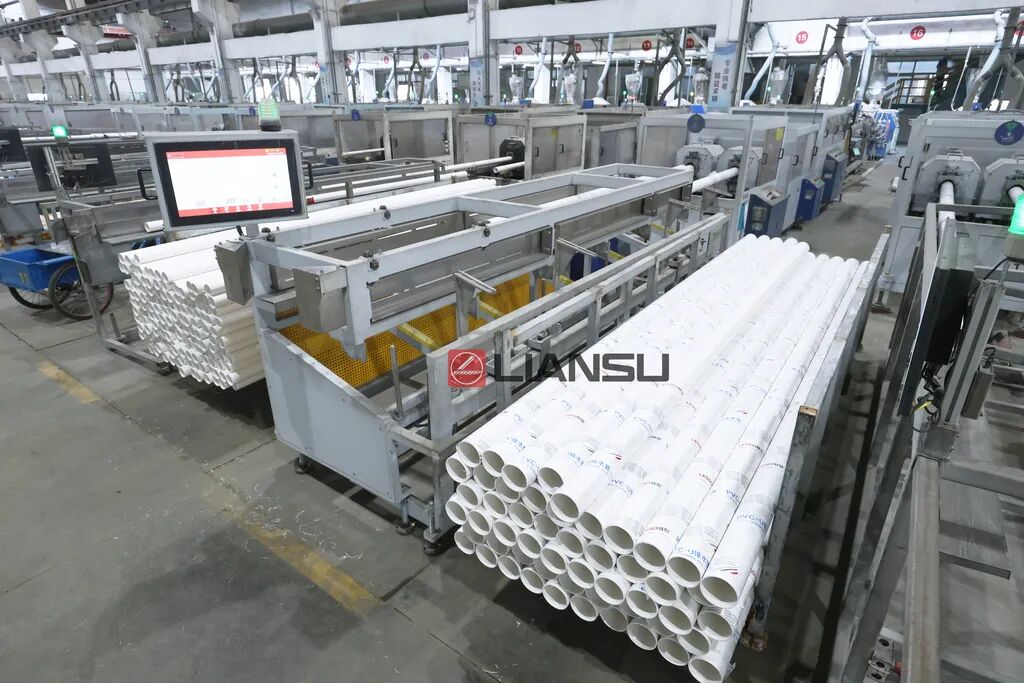

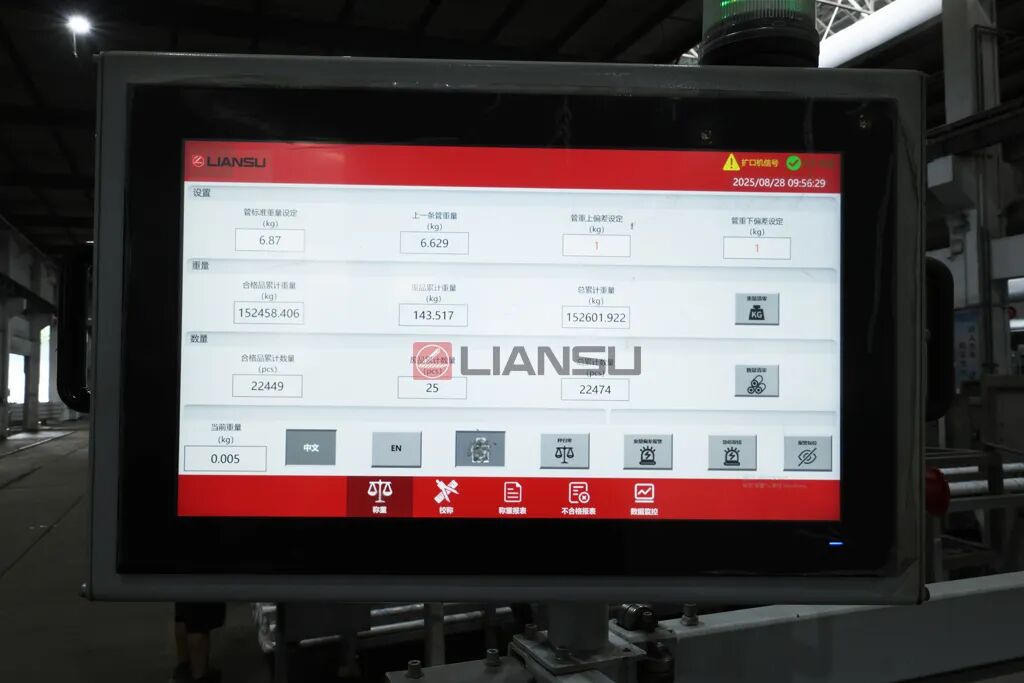

3. Online Automatic Pipe Weighing

Pipe Weighing stacker measures the weight of qualified pipes and acts as a real-time quality inspector, recording the actual weight of each pipe in PC database.

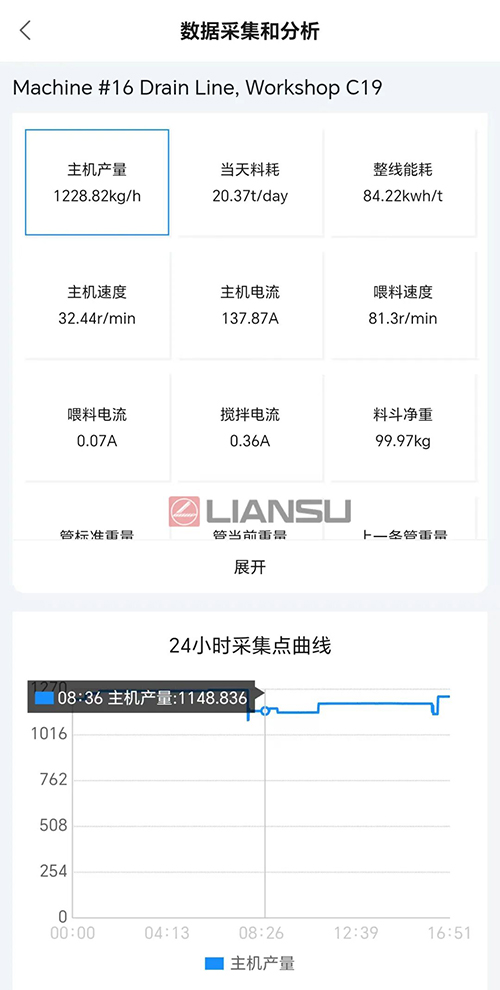

4. Intelligent Production Data Manage

Production management data is collected and uploaded in real time. Managers can remotely view production output, energy consumption, and equipment operating status via mobile app with multi-dimensional report analysis, which helps to achieve lean management.

Improved Performance: Comprehensively Improved

✔ High Production Capacity: Output remains stable at 1240 kg/h.

✔ Low Energy Consumption: The entire line achieves a specific energy consumption of <86 kWh/t.

✔ High Speed: Production speed for Ø110 pipes reaches 12 m/min.

✔ High Precision: Loss-in-Weight feeder provide accurate and stable dosing, minimizing material fluctuations.

✔ High Consistency: Online monitoring of pipe weighing ensures consistent pipe weight.

✔ High Intelligence: Remote data monitoring via mobile app makes production management more intuitive and efficient.

One upgrade will help your production line break through bottlenecks, making production more efficient and intelligent! More info, pls contact: +86-18028101014.
