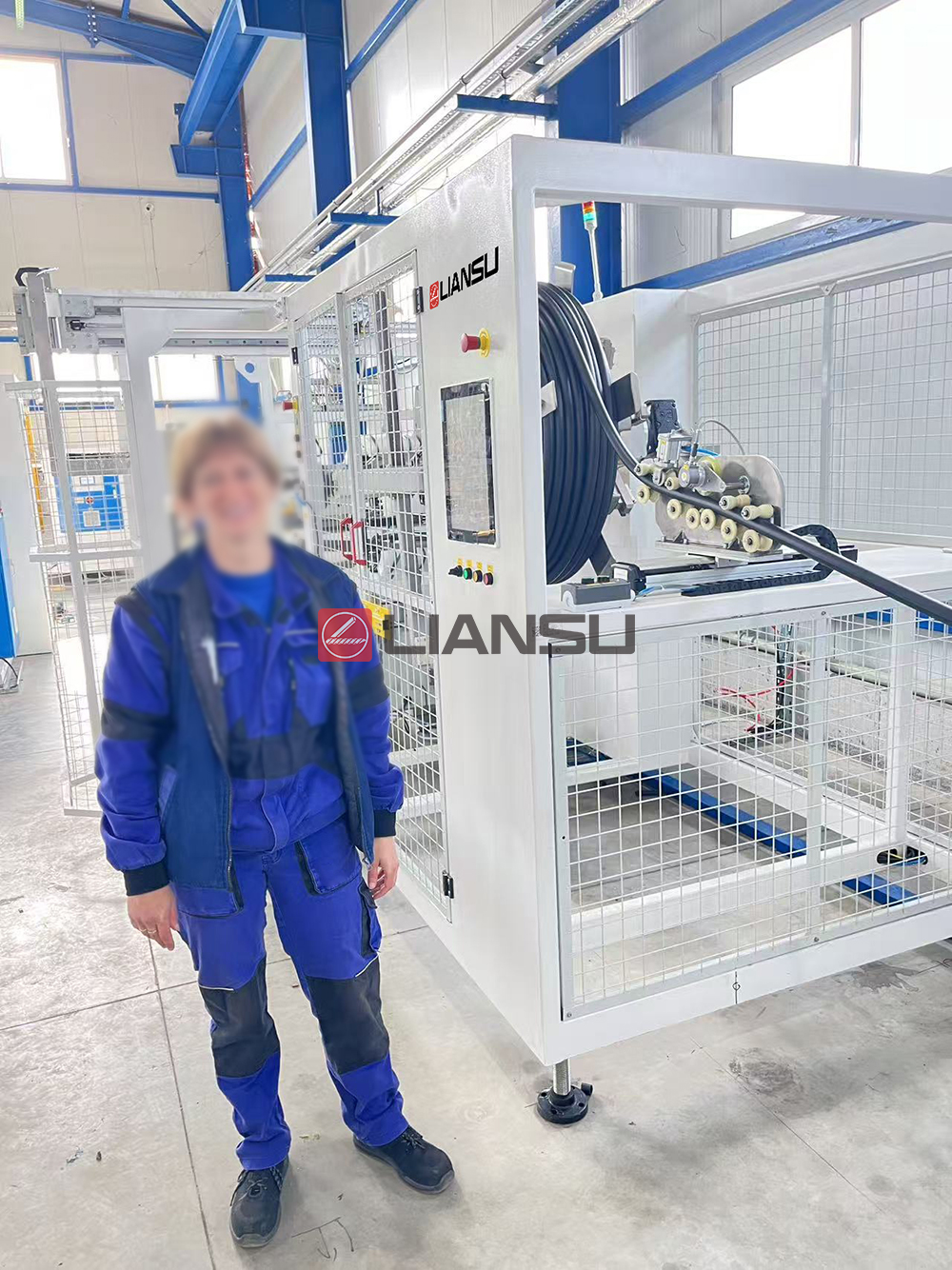

LIANSU's LSZDDJ-32 automatic Coiling & strapping device has been commissioned and acceptance at a European customer site, and achieved good performance on thin-walled pipe coiling and strapping.

Dedicated design for solid pipes, this coiler automatic realized on-line coil changing, coiling and strapping and discharging — eliminating manual intervention traditionally needed for these works.

With 18 years of technical experience on coiler development, our fully automatic solid pipe coiler is now in use by key customers in Europe and America. Our footprint in automatic pipe coiling keeps expanding.

LSZDDJ-32 Dual-station Auto HDPE Pipe Strapping Coiler Machine

• Pipe diameter: Ø16 ~ Ø32 mm


• Min. coil ID: Ø450 mm

• Maxi. coil OD: Ø1150 mm

• Max. coiling speed: 70 m/min

Closed-loop tension control, synchronized line speed

Equipped with a closed-loop tension system, the machine automatically adapts to speed variations of upstream equipment and maintains consistent coiling tension at all times.

6 even strapping cycles & Total cycle: 130 s

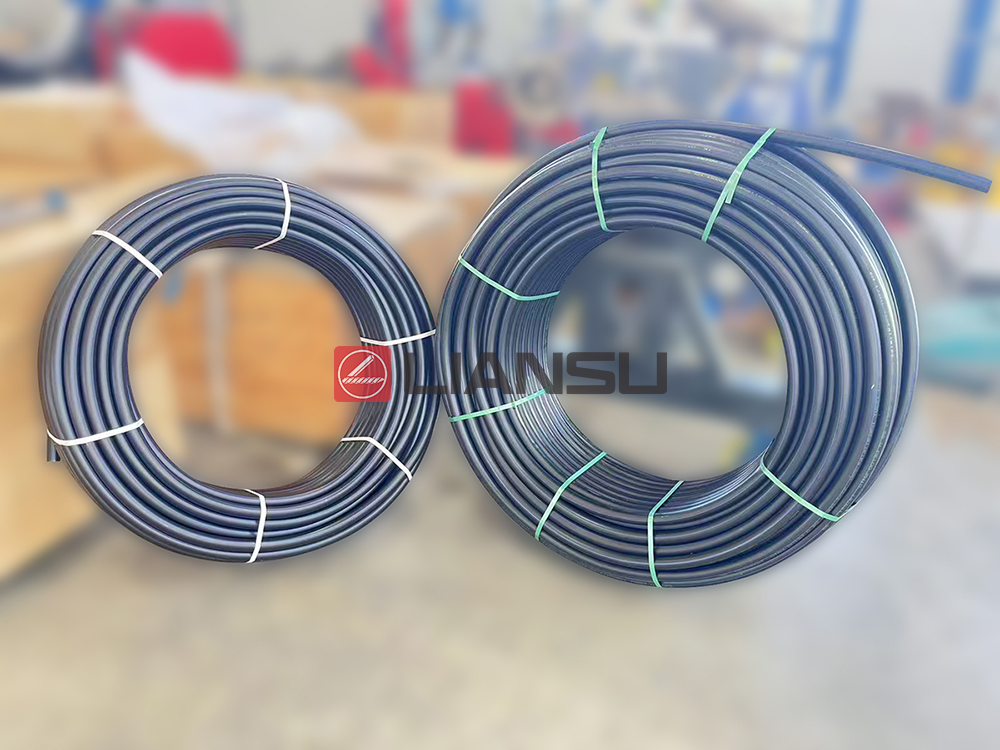

6 uniform PP strap bindings with flatness ≤ 2%. The full cycle from coiling to strapping and unloading takes around 130 seconds, matching high-speed extrusion lines upstream.

Lifting frame – no pipe drop during reel change

During automatic reel change and coiling pause, the lifting pipe storage unit lifts up to hold pipes quickly. This prevents pipes from touching the ground, keeping surfaces clean and avoiding wrinkles or bends.

Liansu provides customized coiling solutions for various pipe types. Contact us for further technical information: +86-13392775773（WhatsApp).
