2025-08-22
34

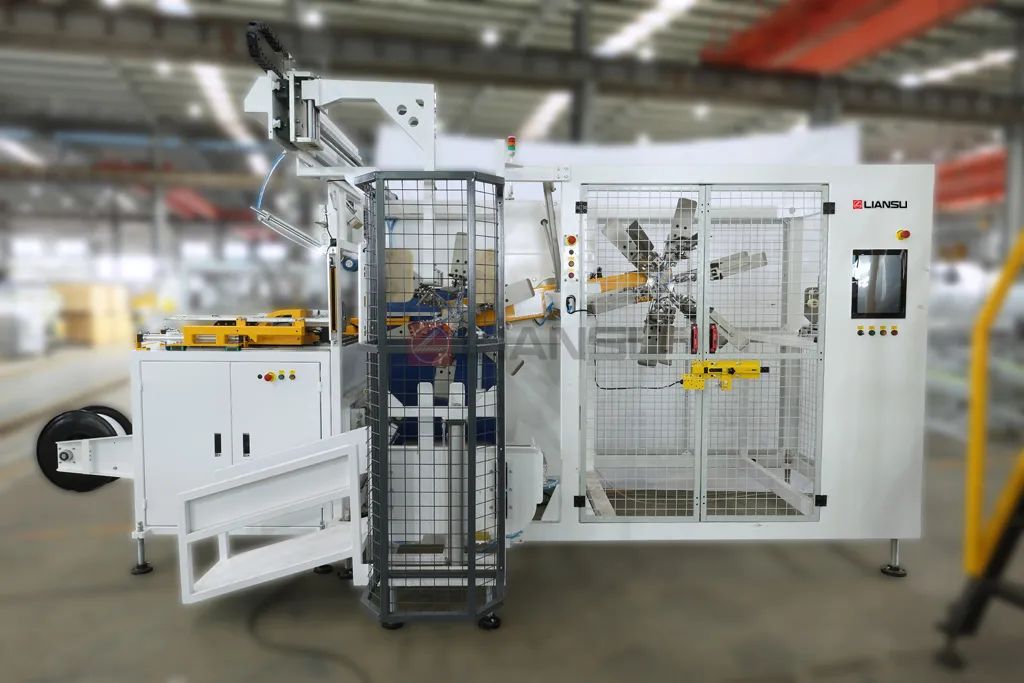

Domestic customer's 32 PPR pipe line upgraded to LIANSU full automatic pipe coiler machine from semi-automatic coiling unit, greatly improved the efficiency and coiled pipe quality.

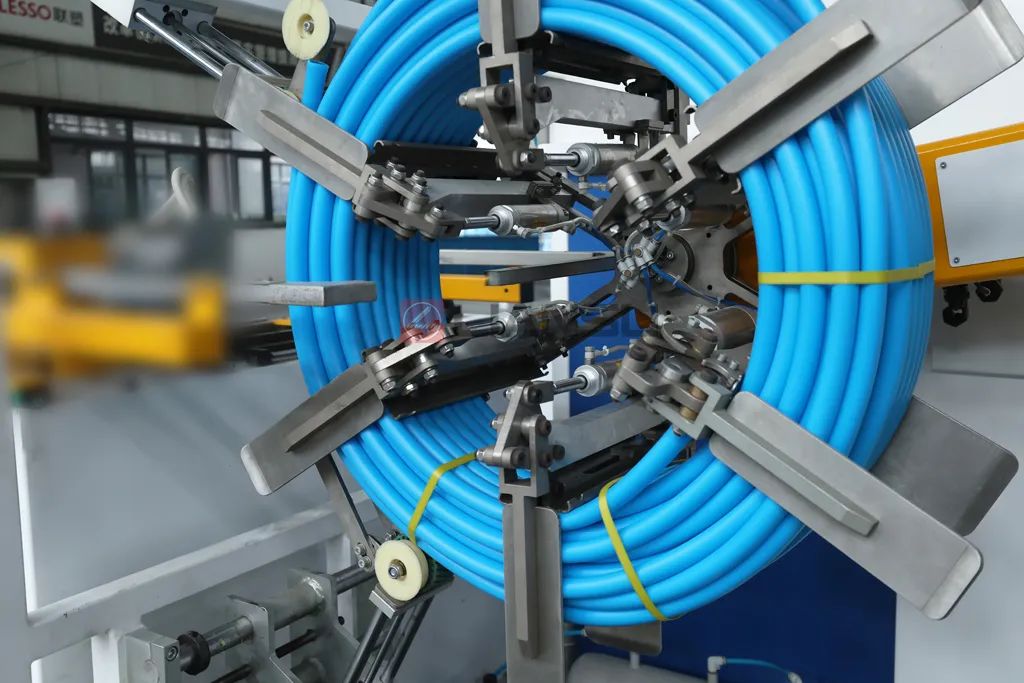

Double-station strapping and coiling
Comparison: Switching from manual assistance to automation avoiding downtime and waiting·
PPR pipe coiling range: Ø16-Ø32mm, production speed: 30 m/min.This model of coiler can reach a max coiling speed of 70 m/min for HDPE/PERT pipe.
Closed-loop tension control system automatically adjusts to different production speeds.
Servo drive ensures neat and beautiful pipe arrangement.
Automatic pipe arrangement, cutting, and clamping reduce manual labor and improve safety.

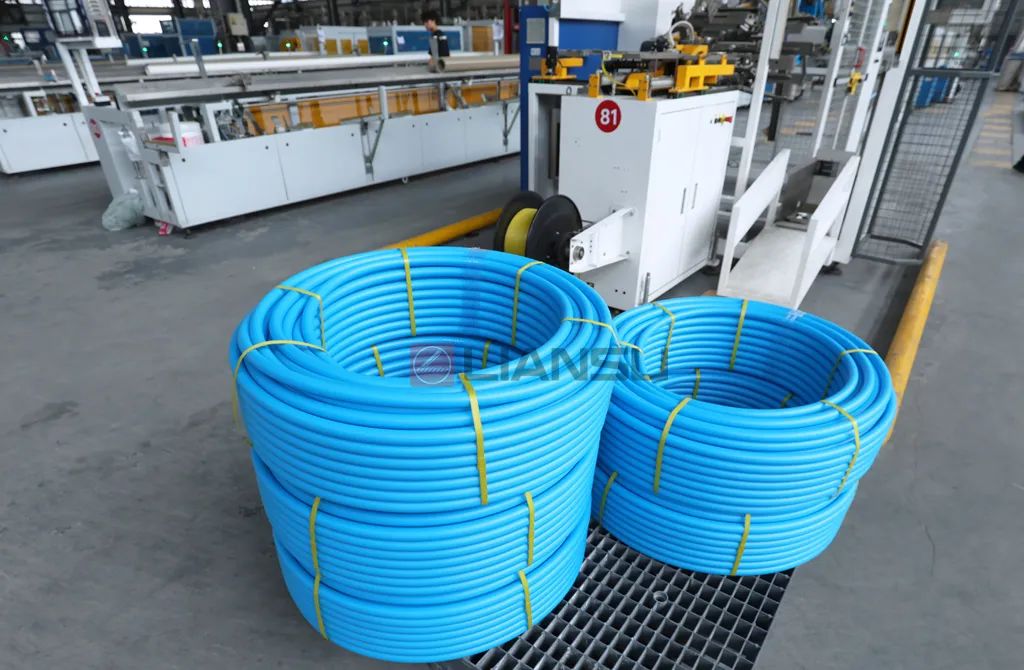

Automatic packing with PP Strapping
Comparison: Transition from manual strapping to automatic, six-step strapping significantly improves efficiency and consistency.
Automatic strap feeding and tightening, along with pressure pipe unit, ensures tight and secure strapping.
Reduced manpower and labor intensity
Automatic discharging
Comparison: Manual handling is replaced by flexible unloading, preventing pipes from falling and causing damage.
Heavy-duty arm with max load capacity of 60kg.
Pneumatic operation for enhanced safety.
Automatic unloading of finished coils for more convenient transportation.
Coiling speed automatic synchronized
Comparison:Manual adjustment is replaced by automatic matching haul off speed, ensuring constant tension and more stable coiling.
Precision sensors and optimized speed control prevent drastic fluctuations.
Smooth coiling ensures uniform and even appearance of the coils.
Except above introduced PPR Pipe coiler, LIANSU already develop different automatic coilers for solid pipe line HDPE, PERT,DUCT PIPE,PVC HOSE, and Single wall corrugated pipe.
Welcome to learn more +86-18028101014.
